#8 Stone for Tile Beds and Pipe Bedding in Indiana

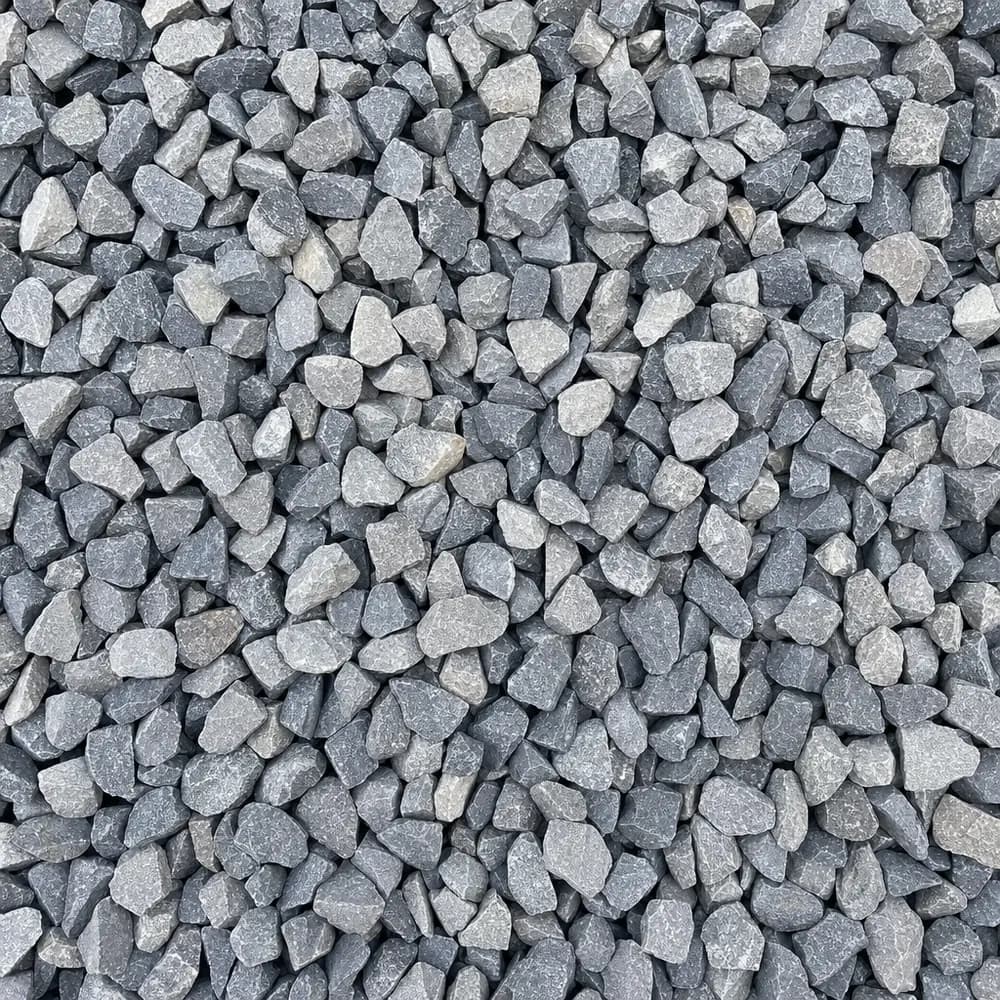

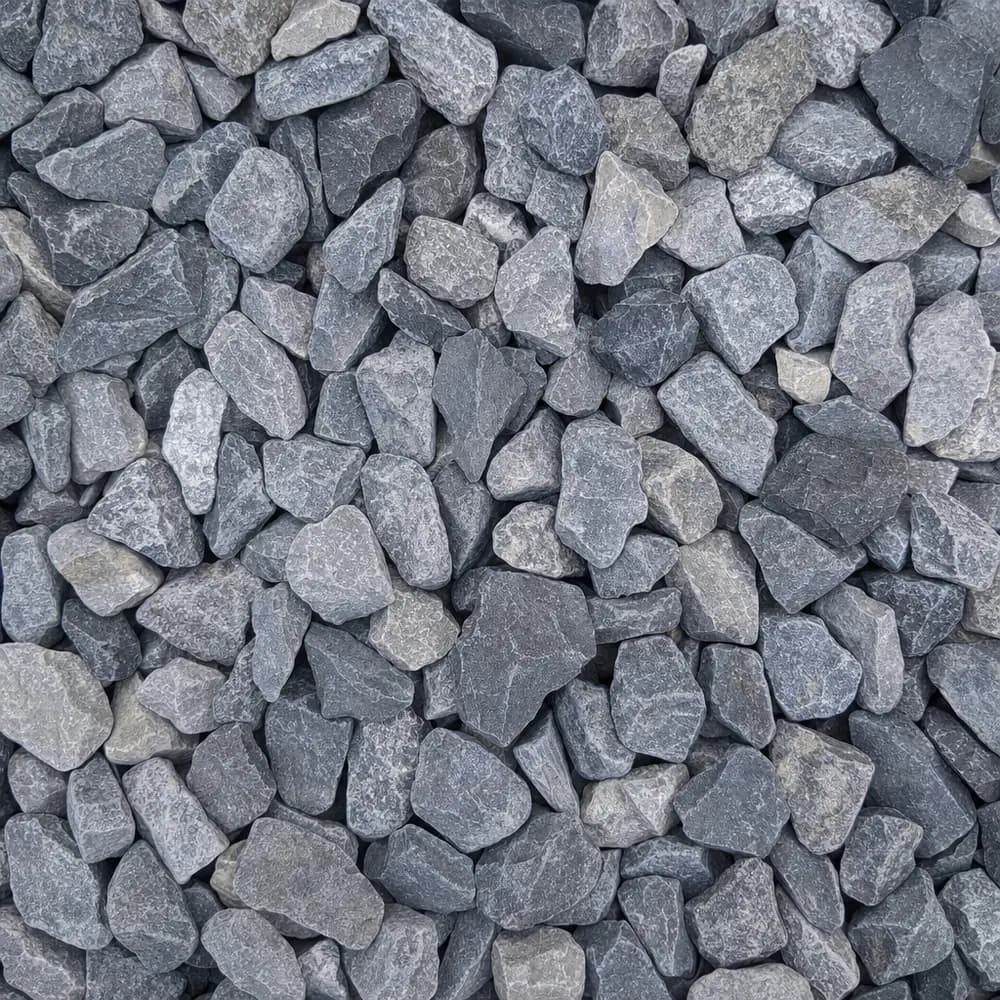

Most of the drainage on the central till plain runs through pipe that somebody buried years ago. Field tile under the crop ground, a perforated line along the pole barn, a lateral out toward the road ditch. On flat clay that lets go of water slowly, the pipe is the outlet, and the stone packed around it decides whether water can reach the pipe at all. #8 stone is the size that job asks for: clean crushed rock, roughly 3/32 to 3/8 inch, with the fines washed out of it.

The trench work that keeps number 8 moving on till-plain ground

Order it when something is going into the ground and has to stay drainable afterwards.

Bedding and surround for pipe. The stone goes under the pipe as a cradle, up the sides and over the crown, so the line sits on something that will not settle unevenly when the clay around it swells and shrinks through a wet spring.

Tile bed repairs. Where a run of tile has been dug up and reset, the same surround goes back. Clean stone keeps the perforations open instead of letting clay seal them.

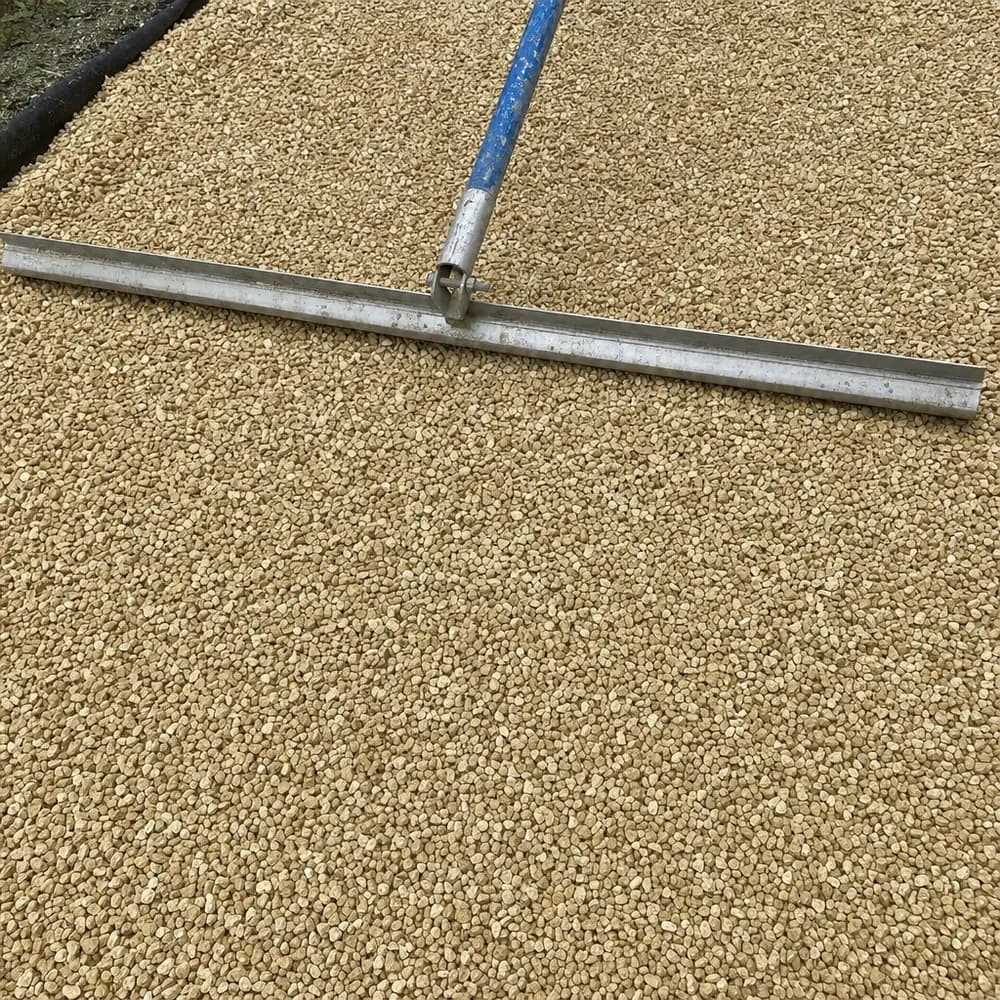

Permeable paver bedding and joint fill. On a permeable build, the paver plan calls for the small clean size in the setting bed and swept into the joints, so rain landing on the surface travels straight down through it.

Free-draining backfill behind a retaining wall. A column of open stone directly behind the stems gives water a route down to a drain instead of letting pressure build against the back of the wall through freeze and thaw.

Why clean stone matters when the field tile is doing all the draining

On dense glacial till, water does not soak away. It moves sideways to the nearest thing that will take it, which is why so much of this farmland depends on tile. That gives an open stone bed two jobs and one hard limit. The two jobs are collecting water out of the soil and carrying it to the pipe. The limit is that stone stores water rather than removing it, so a bed with no connected outlet becomes a buried cistern that stays full all winter.

Fines are the enemy here. Clay washing down into the voids over several seasons closes the passages that make the size work, which is why a fabric wrap around the stone is standard practice on fine-textured ground. Frozen ground ends the season early too, so a tile repair finished in October has the whole winter to prove itself, while one started in February usually has to be done twice.

Cradling a pipe, filling a wall chimney, and what not to tamp

Bed first, then place. Four inches or so of stone in the bottom of the trench, raked level, gives the pipe a continuous cradle. Set the line, check the fall, then bring the stone up around and over it by hand so you can feel whether it has filled under the haunches instead of bridging across them.

Do not run a compactor on the stone itself. Firm it with the back of a bucket or a few passes with a hand tamp so the pieces key together. Real compaction belongs in the soil backfill above the stone, not in the layer whose voids you are trying to keep open.

#8 stone next to #57 and #89 on the same site

The short version: #57 moves more water in a bigger trench, #89 locks up because it keeps its fines, and #8 sits between them as the small clean size that still drains. Pick it when the void has to stay open in a tight space, around a pipe or under a paver.

Tons for a barn-side splash run, a wall chimney and a shed pad blanket

Hypothetical layouts, with the arithmetic shown. Length times width times depth, all converted to feet, divided by 27 for cubic yards. Small clean chips on this site's own published figures run about 2,800 lb per cubic yard, which is roughly 1.40 tons per yard.

A splash run under two barn downspouts, 3 feet wide and 10 feet long at 4 inches. 3 x 10 = 30 square feet. Four inches is 0.333 feet, so 30 x 0.333 = 10 cubic feet. 10 divided by 27 = 0.37 cubic yards, about half a ton.

A drainage chimney behind a 30-foot wall, 12 inches wide and 4 feet tall. 30 x 1 x 4 = 120 cubic feet. 120 divided by 27 = 4.4 cubic yards, roughly 6.2 tons.

An open blanket under a 12 by 16 foot shed pad at 4 inches. 12 x 16 = 192 square feet. 192 x 0.333 = 64 cubic feet, which is 2.4 cubic yards, about 3.3 tons. That blanket is a drainage layer, not the structural base. The compacted layer carrying the load is #53 stone, and clean chips will never take its place because they have no fines to lock.

Getting a load to the trench before the clay sets back up

Put your own measurements through the stone calculator, which takes length and width in feet, depth in inches, a circle or up to five separate areas, and adds a 5 percent margin by default, which you can untick. Then pick a delivery date on this page and the tonnage you need, with delivery arranged from the ZIP code you enter at checkout.

Think about where the pile lands before the truck turns in. The driver needs clear room overhead and firm ground to raise the bed on, and a load tipped on soft spring clay is a second job. If you are unsure whether your trench wants this size or the next one up, ask through the contact page with the trench width and depth to hand.
