#57 Stone in Indiana

Drainage work in the southeast flats has a short honest window. Through winter and early spring the water perches on the fragipan and sits in the valley lowlands, and a trench dug then fills faster than you can bed a pipe in it. From late spring through fall the silty ground dries enough to open a trench, hold a wall and get a bed of #57 stone placed around the pipe before the wet season comes back. Ordering the stone is the easy part. Hitting that window is the job.

Reading the ground before you break into it

Wait for the flats to dry. Silty soils over a dense fragipan stay saturated long after the surface looks workable, and a trench cut into wet silt slumps as fast as it is dug. The tell is simple: if the spoil comes out in slick ribbons rather than crumbs, give it another week.

Know where the water is going before you know where it comes from. An open stone bed collects water and holds it, and that is all it does unless there is an outlet. On flat lowland ground the outlet is usually a tile connection, a ditch or a daylight point down the fall of the yard. Fix that end first. In the hill country along the Whitewater and the Ohio River, the fall is easy and the problem inverts: water arrives fast and concentrated, so the outlet has to be armored with something that will not move, not just opened up.

Work back from frozen ground. Compaction stops when the ground freezes, and so does any hope of backfilling cleanly. A drain finished in October has a winter to prove itself. One started in February usually has to be done twice.

What sits in the pile when #57 stone arrives

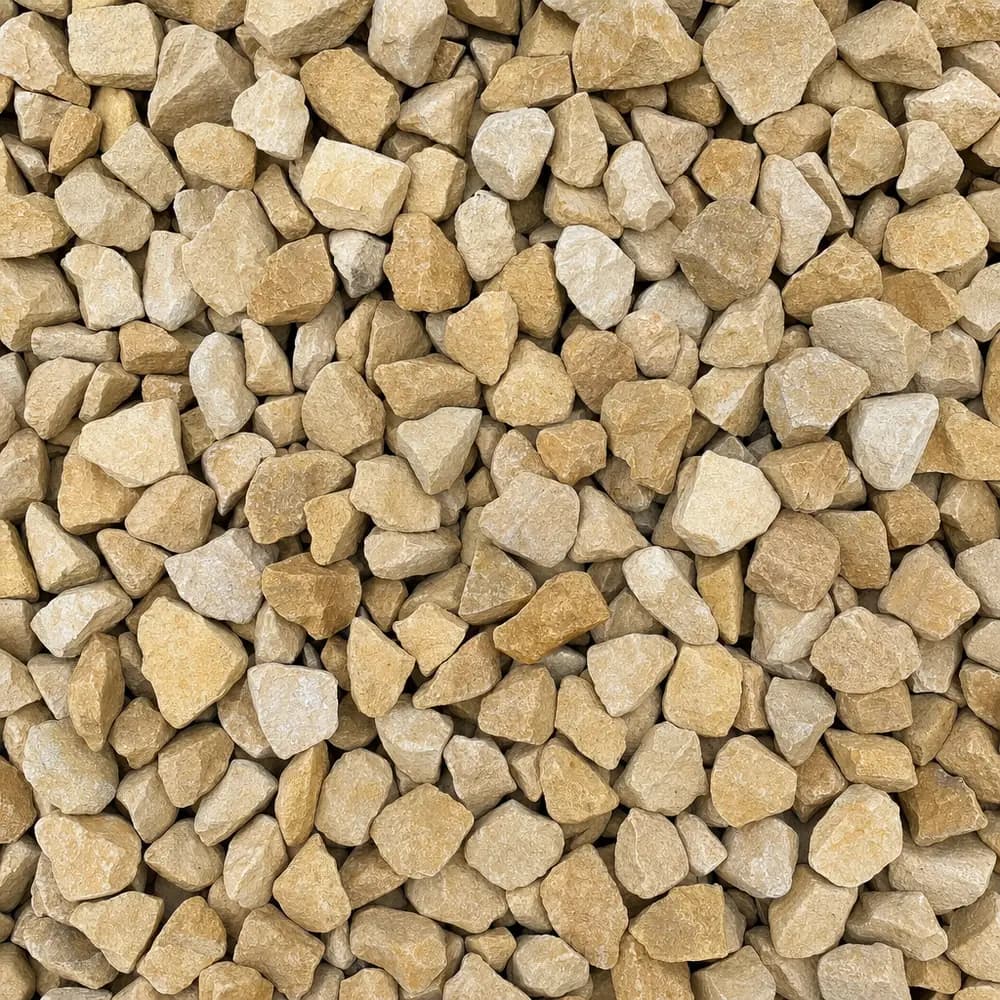

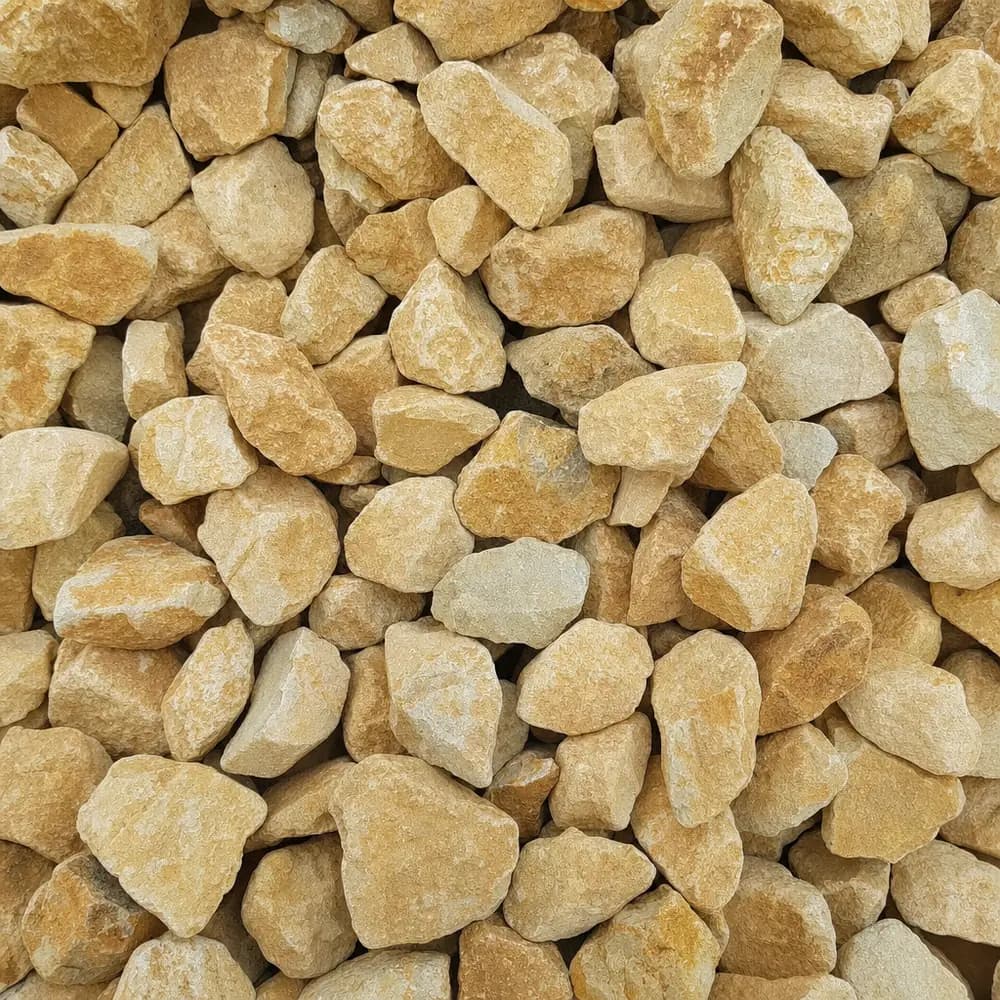

Washed, with the fines taken out. That is the whole point of it. The gaps between the pieces stay open, so water moves through the bed instead of standing in it, and the same open structure is what lets concrete paste surround every piece in a mix.

Footing drains, dog runs and a turnaround that stops holding water

Perimeter and footing drains. Bed the pipe on the stone, surround it, and carry the stone up the trench so water reaching it from the soil has a path down to the pipe rather than into the wall. A filter fabric wrap keeps silt from working into the voids and choking the bed, which on fine valley silt is not optional.

Tile beds and field repairs. The same placement logic applies where a run of tile has been exposed and reset. Stone around the pipe, then the route carried to its outlet.

Retaining wall backfill. A free-draining zone directly behind the wall stops water building up behind the stems. Where winters cycle hard, that zone is what keeps frost from levering the wall forward.

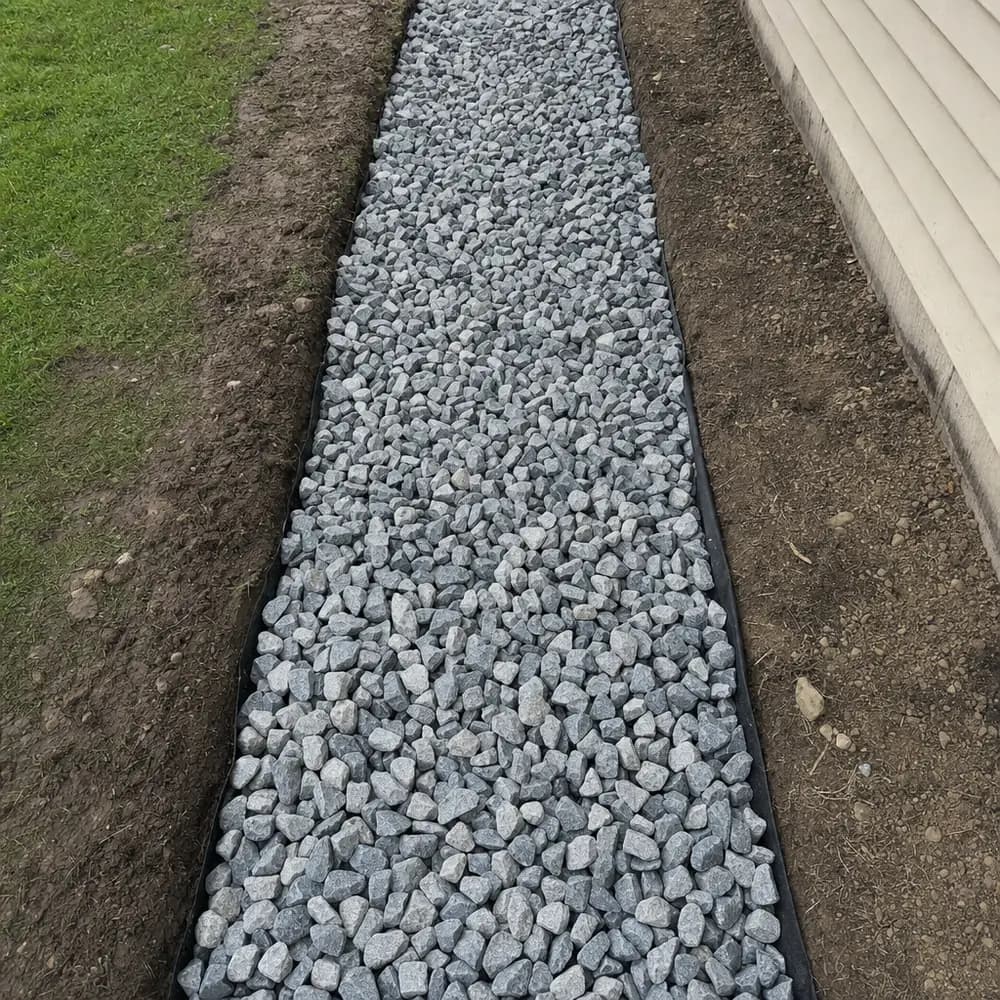

Dog runs and side yards. Open stone over a prepared subgrade drains after every storm and does not hold mud, which is the whole reason it gets chosen for a run along the side of a house.

Turnarounds and parking pads. The angular pieces key into each other under tires and let rain fall straight through rather than pooling on the surface. It stays loose underfoot, so it suits parking more than walking.

Concrete work. The same size is the coarse aggregate in slabs and footings for pole barn and site work.

Working out what to order for each of them

Worked examples only, and the arithmetic is the same each time: length times width times depth, all in feet, divided by 27.

A foundation drain, 60 feet long, a trench 18 inches wide, stone 12 inches deep. 18 inches is 1.5 feet, so 60 x 1.5 = 90 square feet of trench floor. At 1 foot of stone that is 90 cubic feet. 90 divided by 27 = 3.3 cubic yards.

A side-yard dog run, 30 feet by 10 feet at 3 inches. 30 x 10 = 300 square feet. Three inches is 0.25 feet. 300 x 0.25 = 75 cubic feet, which is 2.8 cubic yards.

A turnaround, 24 feet by 20 feet at 4 inches. 24 x 20 = 480 square feet. Four inches is 0.333 feet. 480 x 0.333 = 160 cubic feet, or 5.9 cubic yards.

This site publishes #57 stone at about 2,800 lb per cubic yard, roughly 1.40 tons per yard, so those three come out at approximately 4.6 tons, 3.9 tons and 8.3 tons.

Material is sold by weight rather than volume, so put your own numbers into the stone calculator. It takes length and width in feet, depth in inches, a circle or up to five separate areas, and adds an extra 5 percent margin by default, which you can untick.

Keeping the bed working through its second and third winter

A drain bed fails quietly. Silt works down into the voids, the gaps close, and one wet March the water is back where it started. The fabric wrap is the main defense. Beyond that, keep surface soil and mulch from washing onto an exposed bed, and check the outlet every fall before the ground freezes, because a blocked outlet turns the whole bed into a reservoir.

On a parking pad or a dog run, expect the surface to settle and shuffle in the first season as the stone keys together. Rake it back level, top up thin spots, and leave the edges contained. Order by picking a date and a quantity on this page, with delivery set from your ZIP at checkout, and use the contact page if you want the depth checked against your trench before the load is booked.
